Fence Panels & Gates

Heavy-duty equipment built with American steel for arenas, pastures, and working ranches — designed for strength, durability, and dependable availability.

CONTINUOUS FENCE PANELS

GATES

CUSTOM FABRICATION

CONTACT US

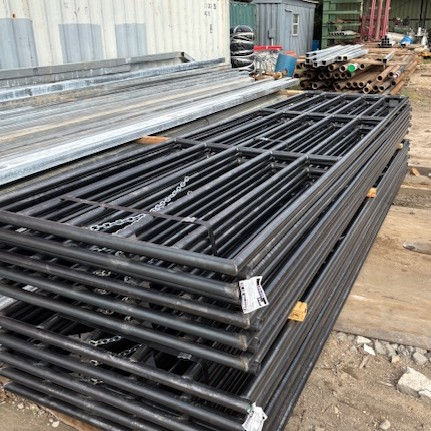

Continuous Fence Panels

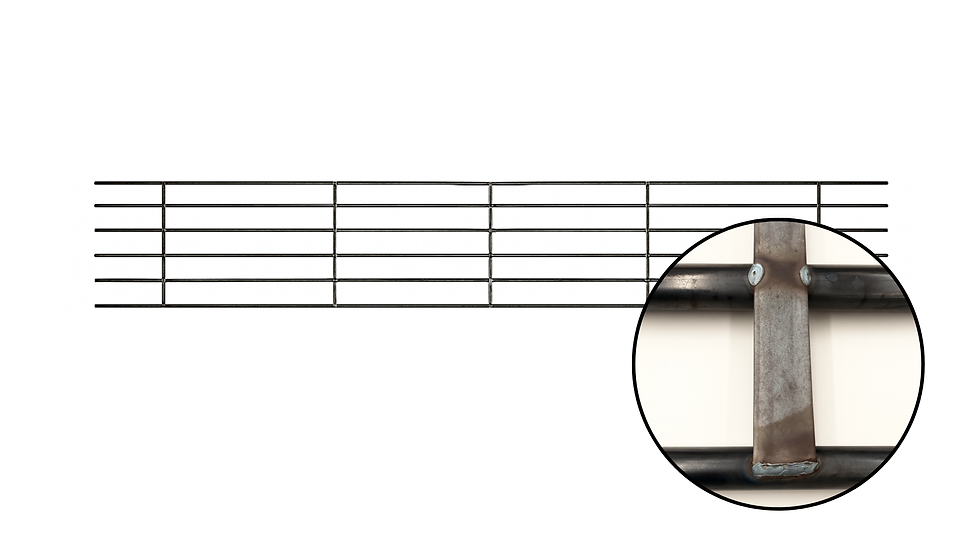

Continuous FENCE PANELS

Flat Strip

Size: 1 1/4 (OD)

Gauge: 14

Height: 1.22 m / 4 ft

Length: 6.1 m / 20 ft

Weight: 57.5 kg / 126.8 lbs

Pieces per Bundle: 20

CONTACT US TO ORDER

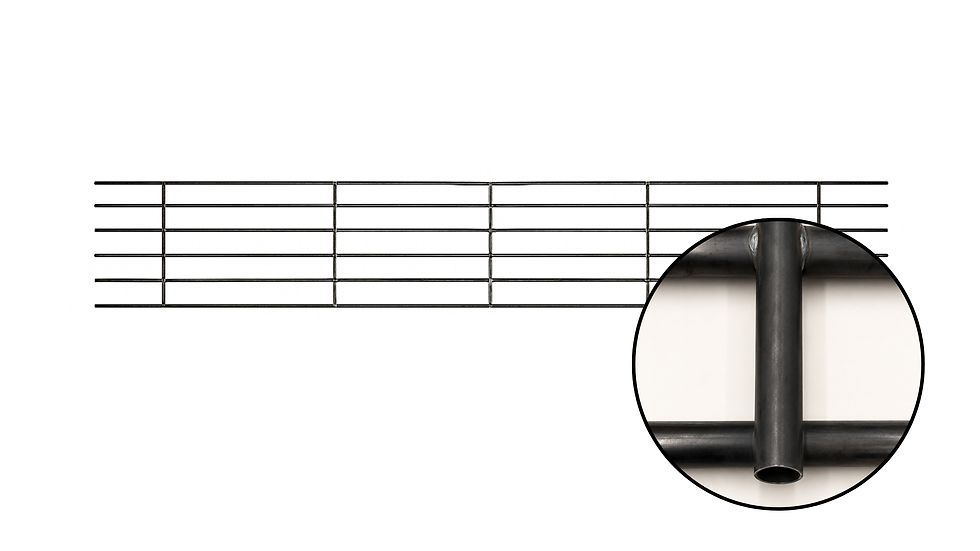

Continuous FENCE PANELS

Round Rod

Size: 1 1/4 (OD)

Gauge: 14

Height: 1.22 m / 4 ft

Length: 6.1 m / 20 ft

Weight: 58.5 kg / 129 lbs

Pieces per Bundle: 20

CONTACT US TO ORDER

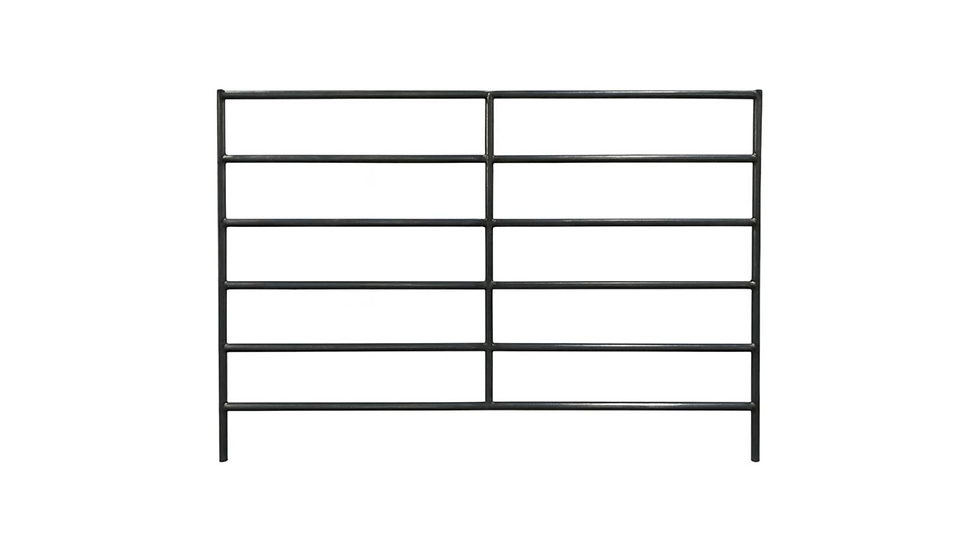

Continuous FENCE PANELS

Custom Made Heavy Duty Panels

Size: 1 1/4” Pipe (OD)

Rails and inserts: 14 gauge, 1.66 in diameter

Height: 72 in (6 ft)

Width: 120 in (10 ft)

Weight: 93.2 lbs

Posts: 14 gauge, 1.66 in diameter

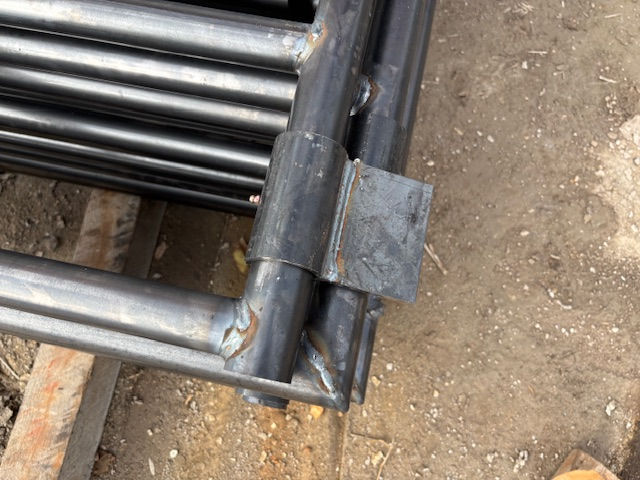

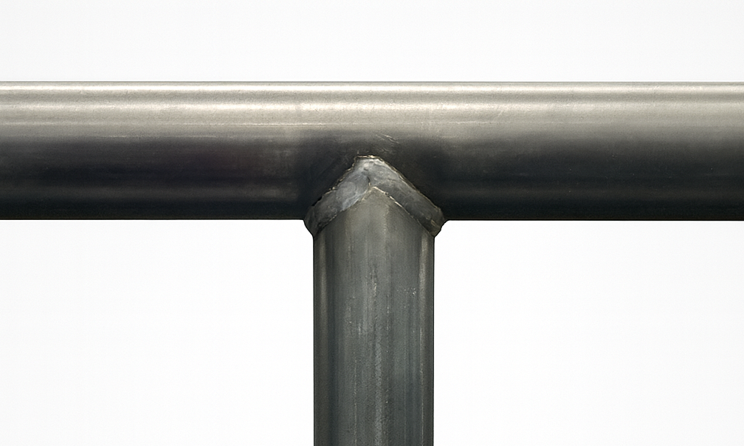

**All rails and inserts are notched and fully welded

CONTACT US TO ORDER

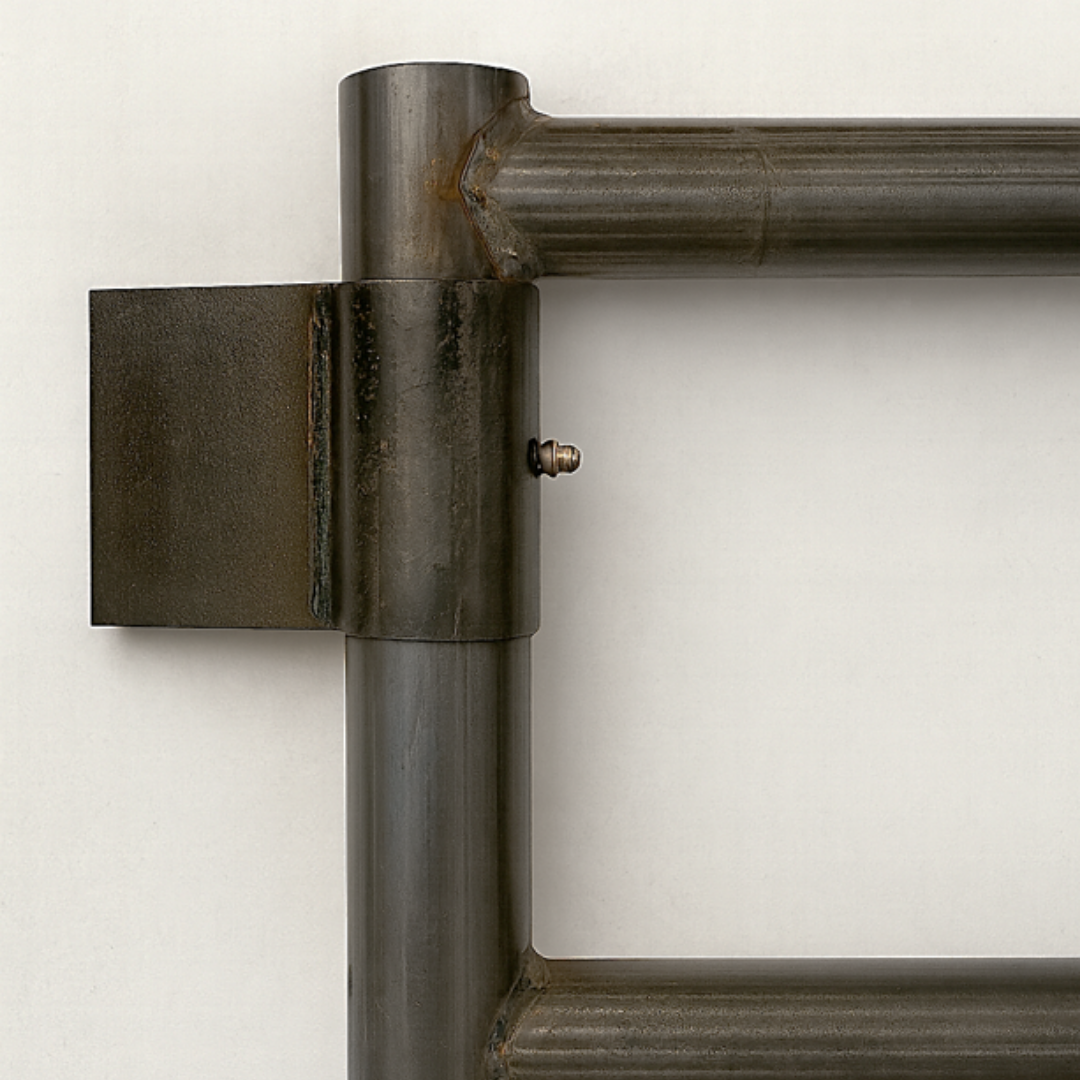

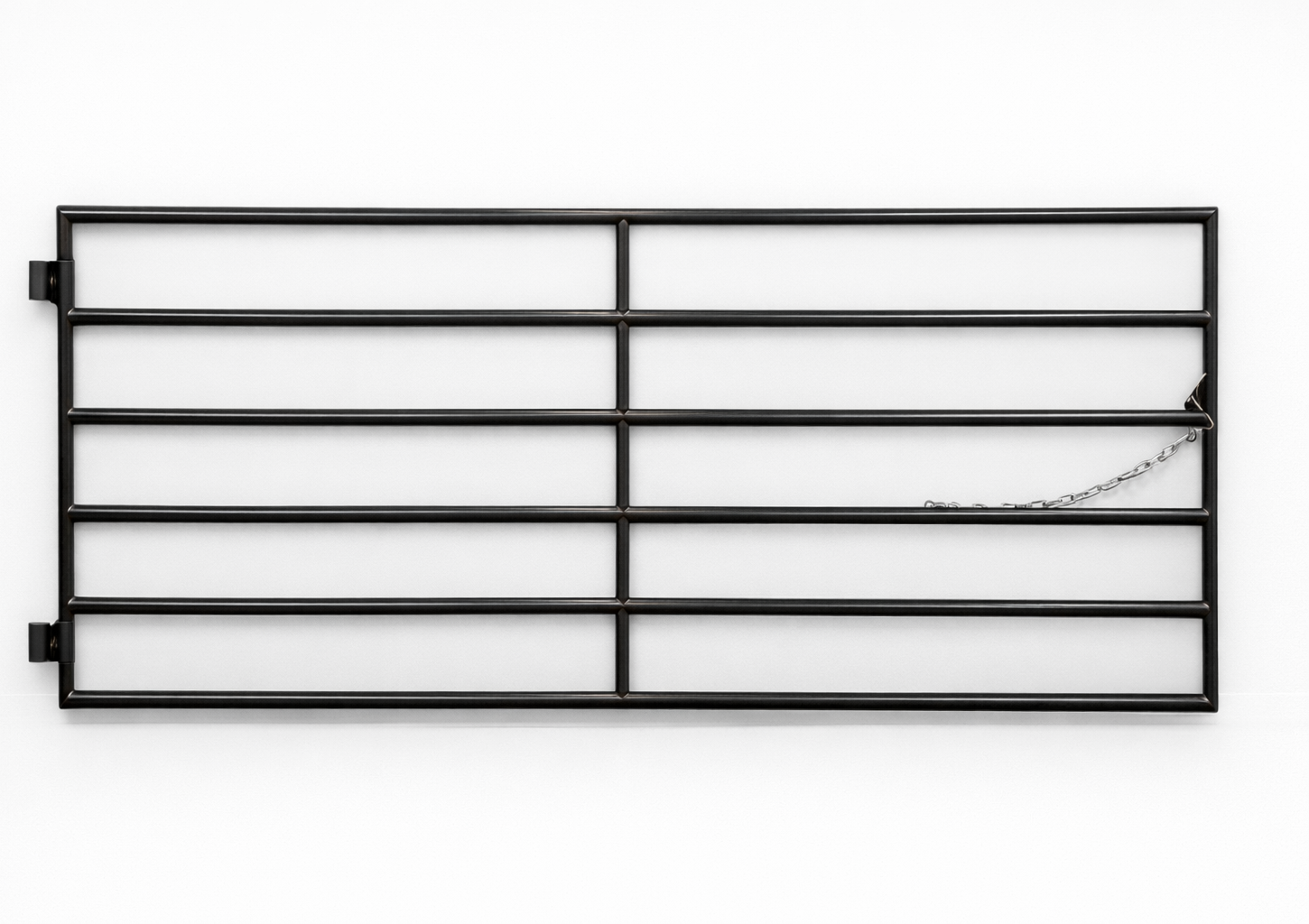

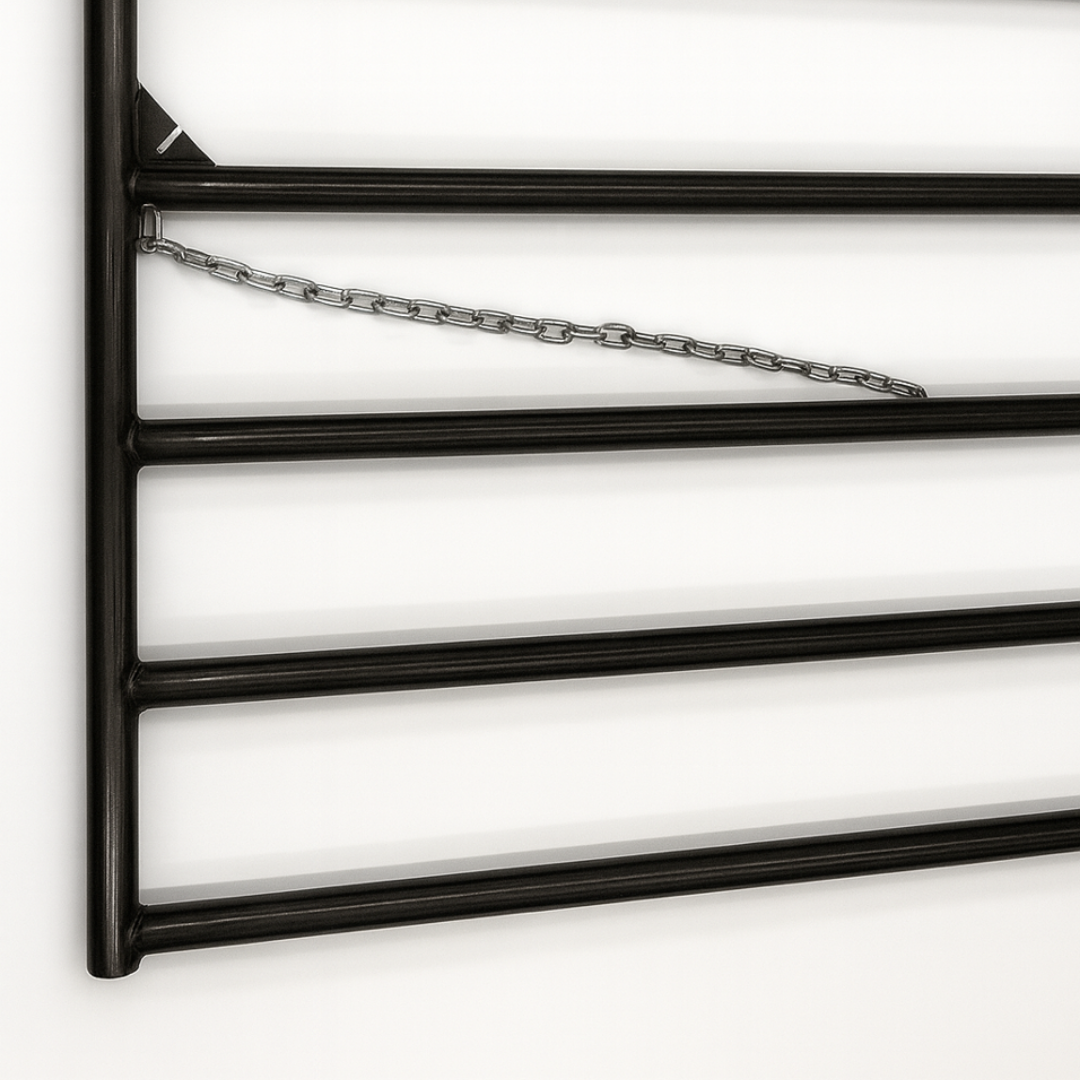

gates

Gate	Gauge	Height (ft/m)	Length (ft/m)	Weight (lb/kg)	Pieces / Bundle
Gate 4 Ft	14	4.17 ft / 1.27 m	4 ft / 1.22 m	48.13 lb / 21.80 kg	10
Gate 6 Ft	14	4.17 ft / 1.27 m	6 ft / 1.83 m	64.01 lb / 29.00 kg	10
Gate 8 Ft	14	4.17 ft / 1.27 m	8 ft / 2.44 m	80.5 lb / 36.5 kg	10
Gate 10 Ft	14	4.17 ft / 1.27 m	10 ft / 3.05 m	97.0 lb / 44.0 kg	10
Gate 12 Ft	14	4.17 ft / 1.27 m	12 ft / 3.66 m	112.4 lb / 51.0 kg	10
Gate 14 Ft	14	4.17 ft / 1.27 m	14 ft / 4.27 m	134.5 lb / 61.0 kg	10
Gate 16 Ft	14	4.17 ft / 1.27 m	16 ft / 4.88 m	146.6 lb / 66.5 kg	10
Gate 20 Ft	14	4.17 ft / 1.27 m	20 ft / 6.10 m	185.2 lb / 84.0 kg	10
